bookmarkExport / Import constraint offset information:

exportConstraintOffsetIconimportConstraintOffsetIcon


Click the icons left in the maya shelves to export / import the constraint offset info to / from  an external file.(Scale constraint is rarely used so it is not supported.)

Importing offset action does not include generating the constraint node.



bookmark The ways to do this ( Do one of the following ) :

Right mouse button click the button constraintToolIconon the MGTools UI. select "Export/Import constraint offset.." in the popup menu.

Right mouse button click the button constrintListerIconon the Constraint tool UI. select "Export/Import constraint offset.." in the popup menu.

In constrain lister UI, click the "Export/Import offset " button. Here U just export / import the selected constraint nodes item.

Click the exportConstraintOffsetIconimportConstraintOffsetIcon icons in your Maya shelves (If U have installed all the MGTools shelves into Maya shelves) .


bookmark Export constraint offset information:

1.First select the constrained object, (If u do this via constraint lister, select the constraint node item in the constraint node list instead.)

2.Click the export offset button / menu , a prompt dialog will appear to ask you to input the file name.

3.Type in the name.(no including the extend name) Click ok to export. If selected constrained object has more than one constraint nodes, then this prompt dialog will popup for more than one times.

Warning The exported offset file will be saved in Maya temp folder/ MG_ConstraintData

Extend name rule: parent constraint will be exported as ".pao" file, point constraint will be exported as "poo" file ; orient constraint to "oro" file, aim constraint to "aio" file.

bookmark Import constraint offset :

1.First select the constrained object, (If u do this via constraint lister, select the constraint node item in the constraint node list first.)

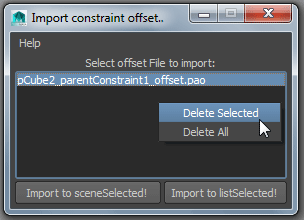

2.Click the Import offset button / menu , Import constraint offset window will appear:
importConstraintOffsetUI


3.Select the exported file in the list. Take care of the extend name which indicates the constraint type.
If u are no using constraint lister to invoke this feature, Click "import to sceneSelected!" button to import .or else click "Import to listSelected!" button to import.

Warning When importing ,if the constraint type / number info of the offset file is different from your selection constrained object's constraint type / number information, then a warning will be given. And the offset info will be imported by sequence.

lightbulb Tips : right mouse button clicking on the list:

delete selected: Delete the offset file. U can do this through pressing del button in your keyboard.

delete all: Delete all offset files.
