bookmarkConstraint lister:

constrintListerIcon



Load constraint lister to manager the constraint of the constraint object.

Or click the constrintListerIcon icon in your Maya shelves (If U have installed all the MGTools shelves into Maya shelves) .



bookmark Features:

Quickly select among the constraint node,the constraint mater and the constrained object to clarify who is constrained by who.

Quickly clear the constraint.

Correct the weight attribute name.

Remove the constraint master object from the constraint master list.

Export / Import constraint offset.



bookmark Constraint lister UI:

Select the constrained object ,then click the button constrintListerIcon in constraint tool or the shelf constrintListerIcon in maya shelves.

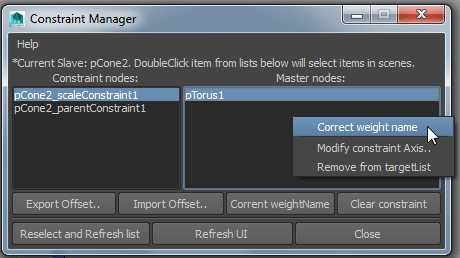

ConstraintLister


flag_blue Constraint nodes list : Shows the constraint nodes of the selected object. Double click it to select the constraint node.

flag_blue Master nodes list : Shows the master list of the constrained object. Double click it to select the master node.

flag_blue Correct weight name : Correct the weight attribute name. When u rename the master node but the constraint weight attribute name wont update. use this to update it.

flag_blue Delete constraint: Delete the selected constraint node . U can press Del key in your keyboard to do the same thing.

flag_blue Clear constraint : Delete all the constraint nodes.

flag_blue Export constraint offset.. :Export selected constraint node's offset information in the constraint nodes list. more

flag_blue Import constraint offset..: Import offset to currently selected constraint node in the constraint nodes list.more

flag_blue Clear offsetFile..: Delete all constraint offset file exported before in the Maya temp folder .more

flag_blue Remove from targetList : Remove the constraint master object from the constraint master list. U can select the item in the right list and press Del key in your keyboard to do the same thing.

flag_blue Modify constraint Axis: Modify the constraint axis of the selected constrained object.

flag_blue Reselect and refresh list : Reselect the constrained slave and refresh the constraint lister list.

flag_blue Refresh UI : Reread the selected node in your scenes.

lightbulb Tips : Some features above are only available in the right mouse button clicking popup menu of the list.
